CPU

AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors

* Refer to www.asus.com for CPU support list

Chipset

AMD B550

Memoria

4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory

Next Generation AMD Ryzen PRO Processors

OptiMem II

3rd Gen AMD Ryzen™ Processors

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Gráficos

1 x DisplayPort 1.2

1 x HDMI 2.1(4K@60HZ)

*Graphics specifications may vary between CPU types.

Integrated Graphics Processor

Soporte Multi GPU

Supports AMD 2-Way CrossFireX Technology

Slots de Expansión

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode) *

3 x PCIe 3.0 x1

1 x PCIe 4.0 x16 (x16 mode)

Almacenamiento

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset :

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

6 x SATA 6Gb/s port(s)

3rd Gen AMD Ryzen™ Processors :

Support Raid 0, 1, 10

LAN

Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard

Datos de redes inlámbricas

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Intel® Wi-Fi 6 AX200

Supports dual band frequency 2.4/5 GHz

Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth

Bluetooth v5.1*

*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio

- Audio Shielding

ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A

- Premium Japanese audio capacitors

- Audio Cover

- Optical S/PDIF in port(s) at back panel

- SupremeFX Shielding™ Technology

- Dual OP Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality120dBSNR stereo playback outputand113dBSNR recording input

- Supports up to 32-Bit/192kHz playback *

* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Audio Feature :

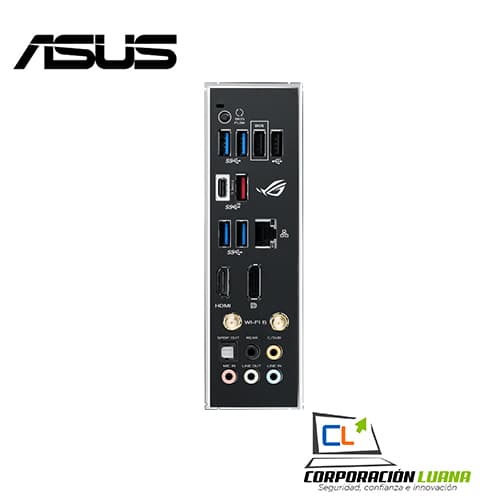

Puertos USB

Front USB Port ( Total 6 )

2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C^®)

Rear USB Port ( Total 8 )

4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

2 x USB 3.2 Gen 1 port(s)

2 x USB 2.0 port(s)

4 x USB 2.0 port(s)

Software Features

ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS® Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Features
Armoury Crate
- Aura Creator
- Aura Sync
- AI Noise Cancelling Microphone
AI Suite 3:
- PPSU
EPU
DIGI+ VRM
Fan Xpert 4
TurboV EVO
- EZ update
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
